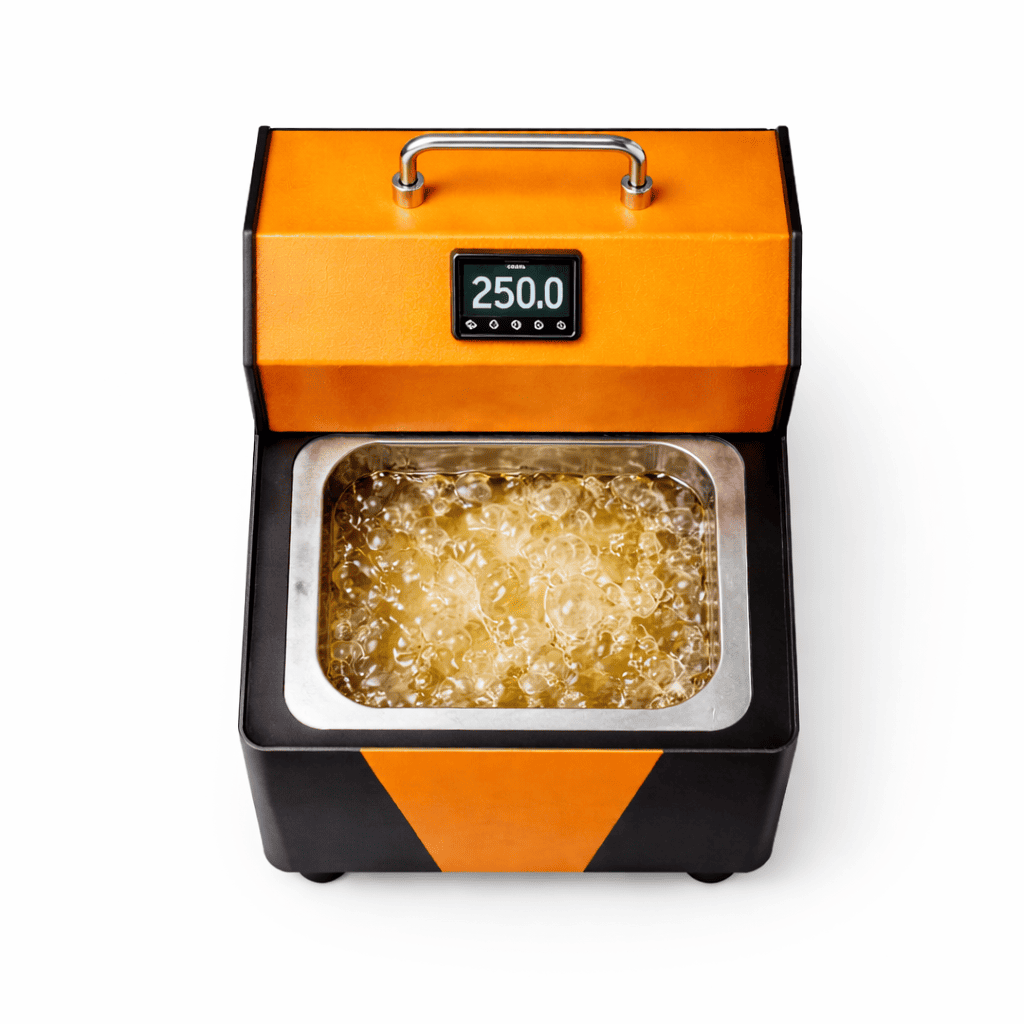

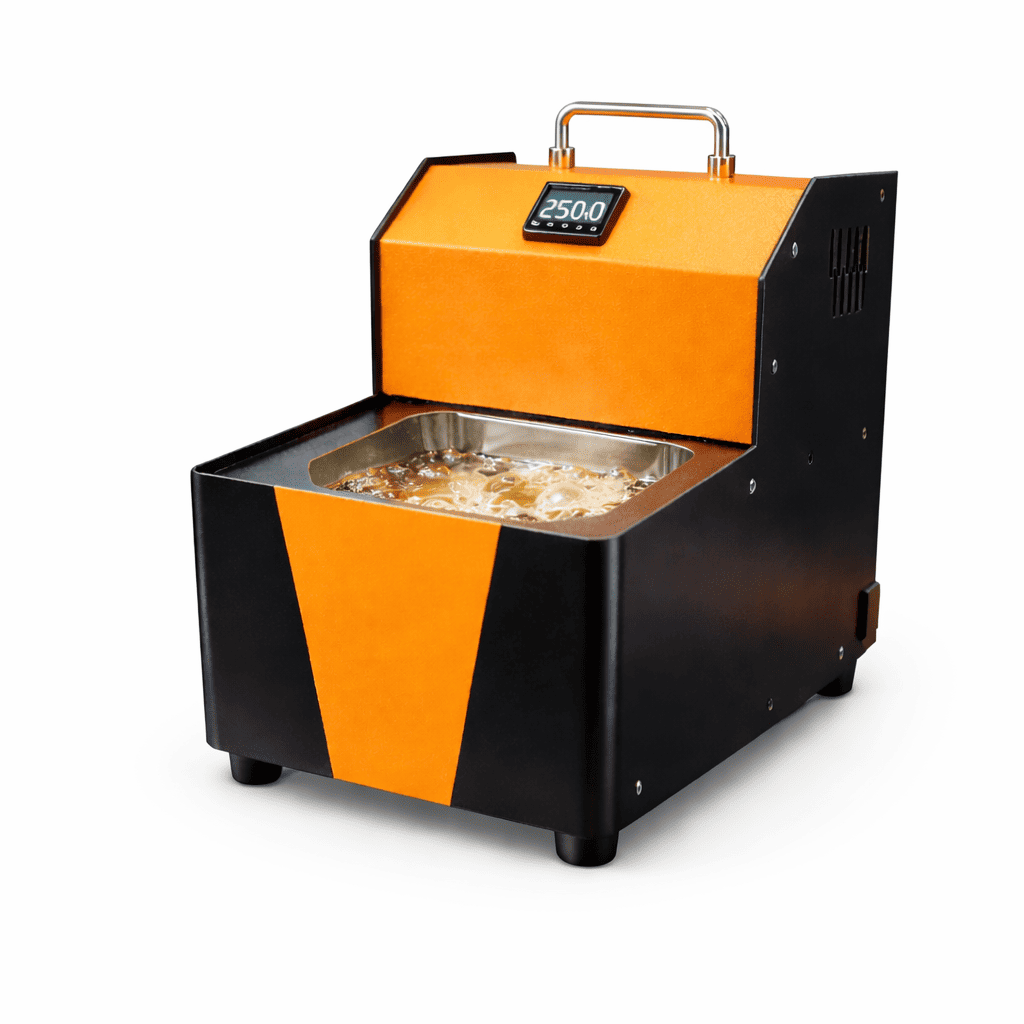

Liquid Oil bath Calibrator 50°C to 250°C

Introducing a portable oil bath temperature calibrator designed for precise temperature calibration of RTD temperature sensors across various shapes and sizes within industrial settings. This calibrator offers a broad temperature range from 50°C to 250°C, allowing for versatile applications. Its portability ensures convenience and flexibility in calibration

Model Lab O23250
temperature range 50 to 250 ° C



Features

  • Wide Temperature range in Portable Liquid Bath
  • High Stability
  • Light Weight
  • Compact In Size
  • Reservior Capcity 5 liter
  • Oil -Silicon 50 Cst

Description

O-23250-Lab Portable Oil Calibration bath is a best in class product for Calibration of Temperature Sensors. Liquid calibration baths are the most stable and uniform temperature sources for doing comparison calibration of temperature probes and sensors in a laboratory. They use a large fluid mass to maintain a stable and uniform test environment that provides the flexibility to calibrate probes and sensors of various sizes, shapes, and lengths.

We offers the broadest range of calibration baths in the industry. These baths include the O2330 and O23250 baths, compact baths, deep compact baths, and full-size standard baths. Depending on the temperature range of your application, performance required, and your budget, we have a calibration bath to meet your needs

Technical Specification

Model Lab O-23250
Brand Measurax
Control Range 50 to 250˚C @ 25˚C
Resolution 0.1 ˚C
Control Accuracy ± 0.1 ˚C
Thermal Instability ±0.03°C at 50°C
±0.05°C at 100°C
±0.08°C at 250°C
Stabilization Time/settling time 20 minutes after set point is achieved
Cooling Time 120 Min ( 250 °C to 50°C) @25°C
Heating Time 60 Min (50°C to 250 °C ) @25°C
Power Supply : 230 V(AC), (50 Hz).
Construction Size (H x W x D) 450(H) x 220(W) x 350(D) mm
Weight 10 Kg(approx

Download DataSheet
